Compressive Strength Enhancement of Vertically Aligned Carbon Nanotube Forests by Constraint of Graphene Sheets

Author

Materials 2017, 10(2), 206; doi:10.3390/ma10020206

Author

Chih-Chung Su

, Ting-Xu Chen

 and Shuo-Hung Chang *

Department of Mechanical Engineering, National Taiwan University, Taipei 10617, Taiwan

^*

Author to whom correspondence should be addressed.

Academic Editor: Der-Jang Liaw

Received: 20 October 2016 / Revised: 13 February 2017 / Accepted: 16 February 2017 / Published: 21 February 2017

View Full-Text   |     Download PDF [4441 KB, uploaded 21 February 2017]   |

 Browse Figures



Abstract

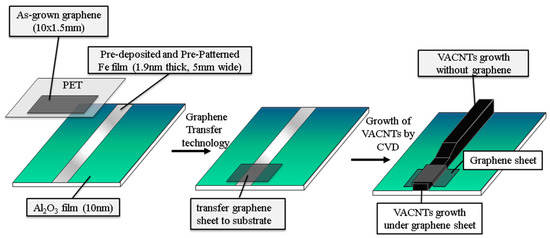

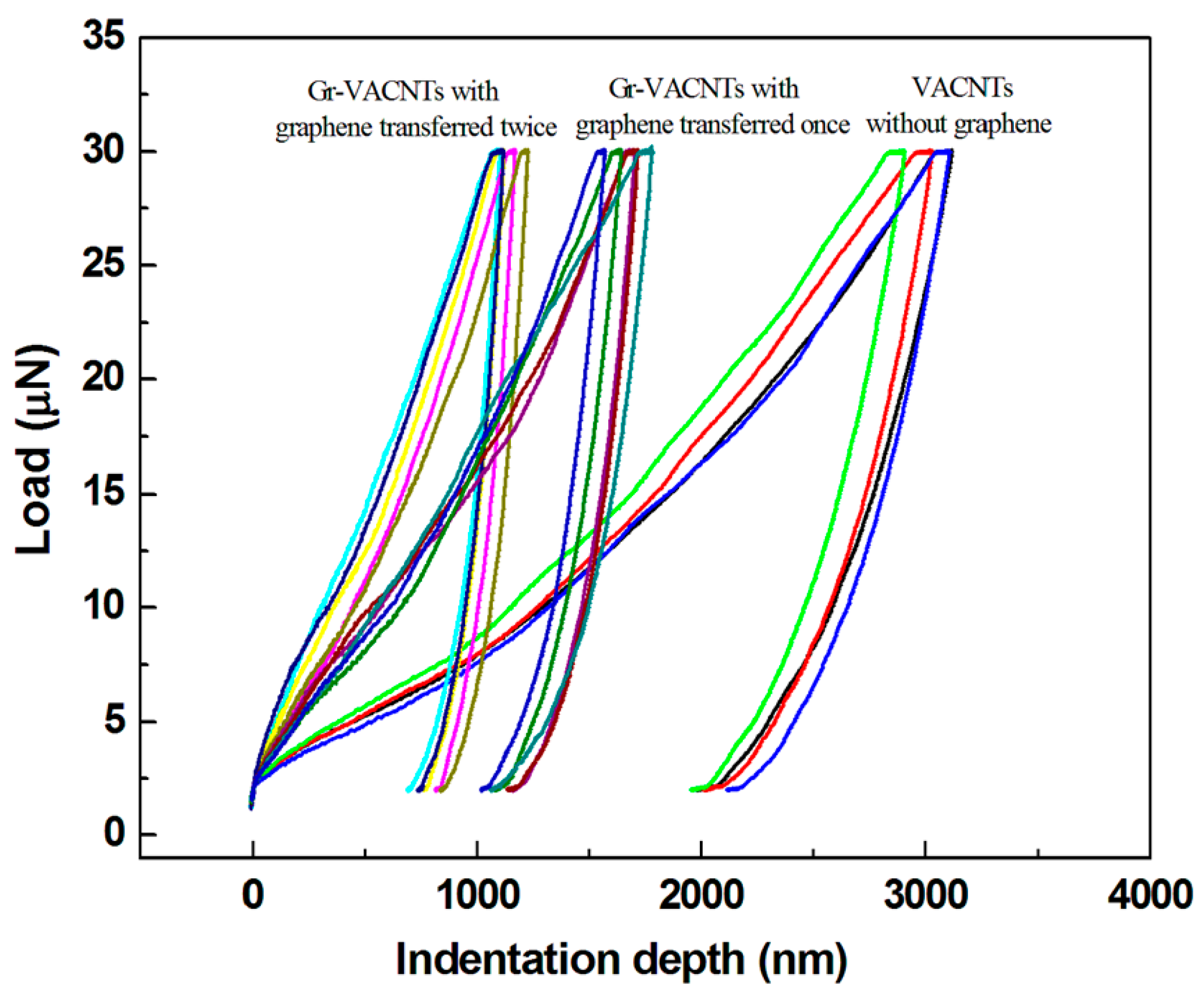

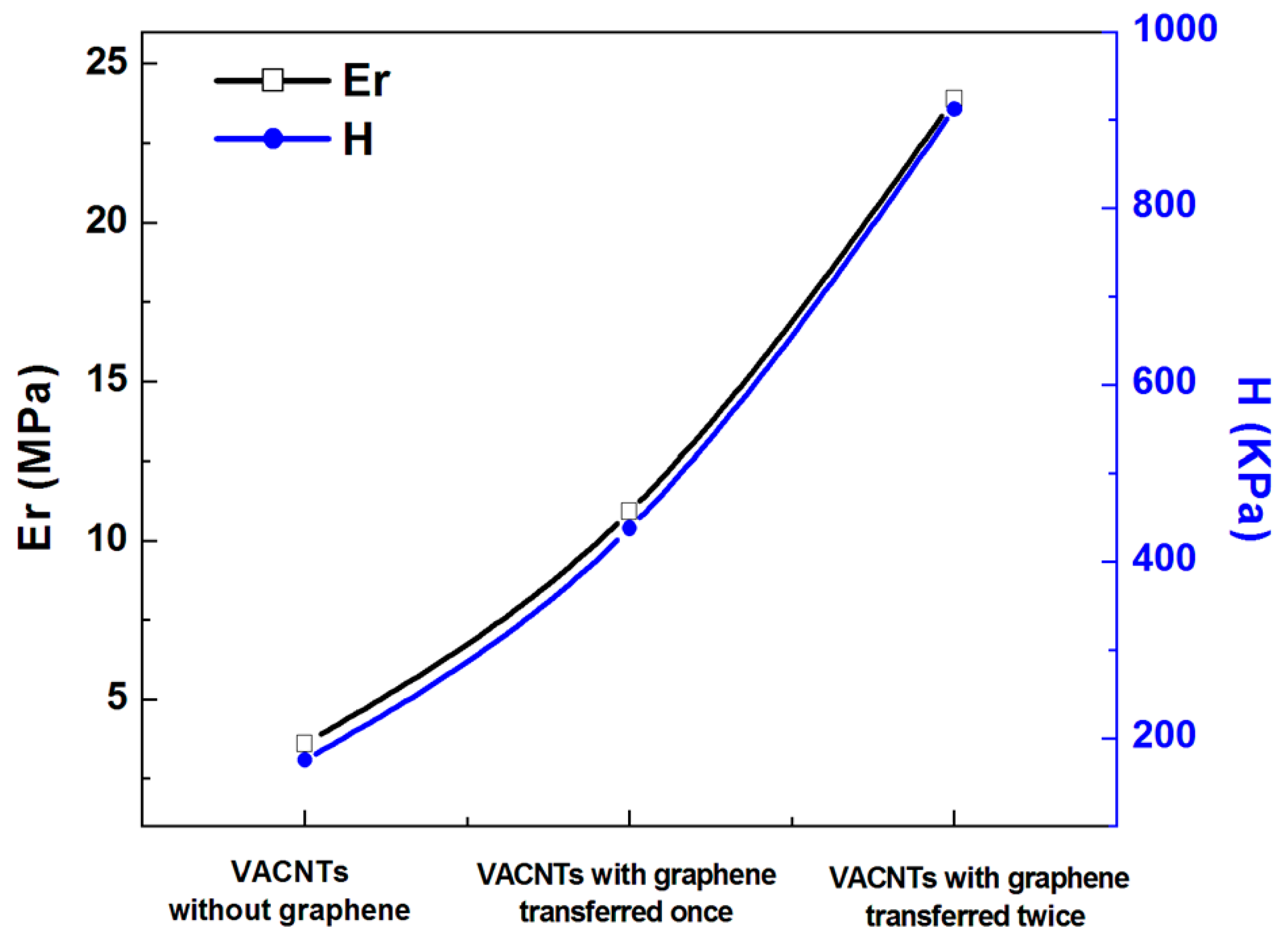

We fabricated a 3D sandwich hybrid material composed of graphene and vertically aligned carbon nanotube forests (VACNTs) using chemical vapor deposition. The graphene was first synthesized on Cu foil. Then it was transferred to a substrate which had a pre-deposited catalyst Fe film and a buffer film of Al₂O₃ for the growth of VACNTs. The VACNTs were grown underneath the graphene and lifted up the graphene. The graphene, with its edges anchored on the Al₂O₃, provided a constrained boundary condition for the VACNTs and hence affected the growth height and mechanical strength of the VACNTs. We prepared three groups of samples: VACNTs without graphene, VACNTs with graphene transferred once (1-Gr/VACNTs), and VACNTs with graphene transferred twice (2-Gr/VACNTs). A nano-indentation system was used to measure the reduced compressive modulus (Er) and hardness (H). The Er and H of Gr/VACNTs increased with the number of transfers of the anchored graphene. The 2-Gr/VACNTs had the largest Er and H, 23.8 MPa and 912 KPa, which are 6.6 times and 5.2 times those of VACNTs without the anchored graphene, respectively. In this work, we have demonstrated a simple method to increase the mechanical properties and suppress the height of VACNTs with the anchored graphene and number of transfers. View Full-Text

Keywords: graphene;  vertically aligned carbon nanotube forests;  3D structure;  mechanical properties;  nanoindentation

▼ Figures

Figure 1
